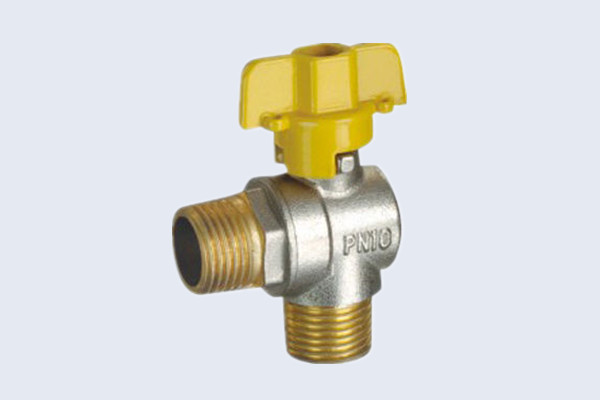

Angle Male/Male PN10 Brass Gas Ball Valve N10112017X

Gas Ball Valves

Angle Male/Male PN10 Brass Gas Ball Valve N10112017X
Angle Male/Male PN10 Brass Gas Ball Valve N10112017X
Angle Male/Male PN10 Brass Gas Ball Valve N10112017X

Key words: Brass Gas Ball Valves, Forged Brass Gas Ball Valves, Angle Brass Gas Ball Valves, Forged Brass Gas Ball Valves China, Brass Mini Ball Valves For Gas, 1/2 inch Brass Gas Ball Valve, China Brass Gas Ball Valves Manufacturers, Forged Brass Gas Ball Valves, 3/4" Brass Gas Ball Valve, Full Bore Ball Valves

Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free

Applications: Fluid control system for building and plumbing: natural gas, household gas, and other non-corrosive air flow



Brass gas ball valve is made of forged brass and operated with handle, designed for domestic natural gas with better sealness, easy to open and close, widely used for plumbing, heating, and pipelines.

Product Information:

Product name Angle Male/Male PN10 Brass Gas Ball Valve
Sizes 1/2"
Bore Standard bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN10 / 150Psi
Working temperature
-10 to 110°C
Working durability
10,000 cycles
Quality standard
EN331, EN13828
End Connection
BSP, NPT
Features:
Heavy-duty design for higher pressure
Anti-blow-out stem structure
100% leakage test for each valve
OEM production acceptable
Materials
Spare Part
Material
 Body
Forged brass, sandblasted and nickel-plated
Bonnet
Forged brass, sandblasted and nickel-plated
Ball
Forged brass, polished and chrome-plated
Handle
Aluminum with Coating
Nut
Steel
Stem
Brass
Ball seat
PTFE
Packing
Inner boxes in cartons, loaded in pallets
Customized design acceptable

1, Production flow of China Brass Ball Valves:
Production flow of China Brass Ball Valves

2, Brass material Chemical composition used for brass gas ball valves:
brass material for China Brass Ball valves
More details please refer to blog article  How to Select China Brass Valve Material

3, Bore sizes for brass gas ball valves:
Bore sizes for China brass ball valves

4, Available surface treatments of brass gas ball valves:
Available surface treatments of brass ball valves

5, Installation instruction of China brass gas ball valves:
Installation instruction of China brass ball valves
Full details please refer to blog article Brass Ball Valve Installation Instruction

6, Packing of China brass gas ball valves:
Standard export packing, inner boxes in cartons, loaded in pallets
Packing of brass ball valves

7, Testing Lab for China brass gas ball valves:
In our testing labs we have excellent equipments to test our brass ball valves, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
Testing Lab for China brass ball valves
More details please refer to blog article Quality Test for China Brass Ball Valves

8, Why choose NAFCO as your China Brass Gas Ball Valve Suppliers?
NAFCO is your best China Brass Ball Valve Supplier
NAFCO is a professional China brass gas ball valve Manufucturer with reliable and stable quality.
You are welcome to contact us for any questions you have.
